Product introduction

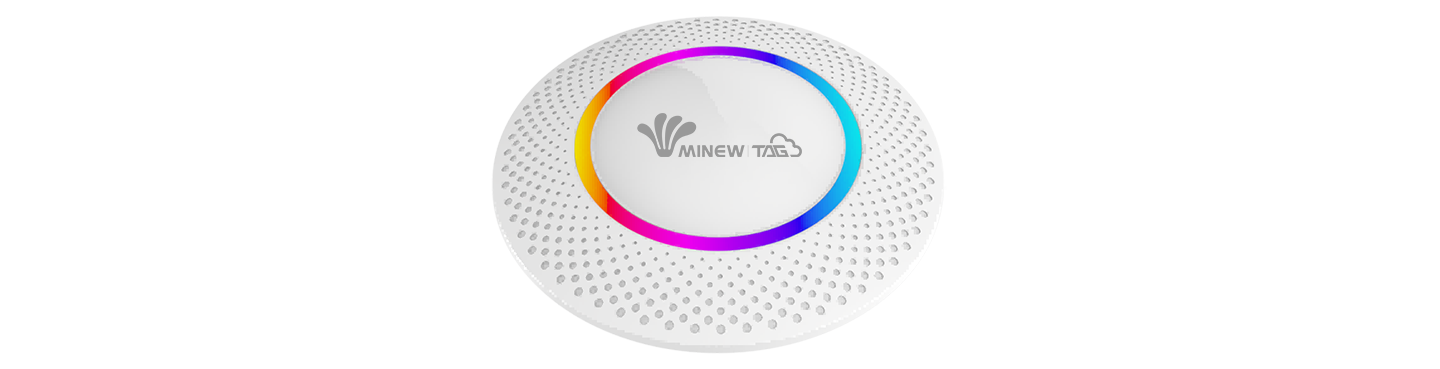

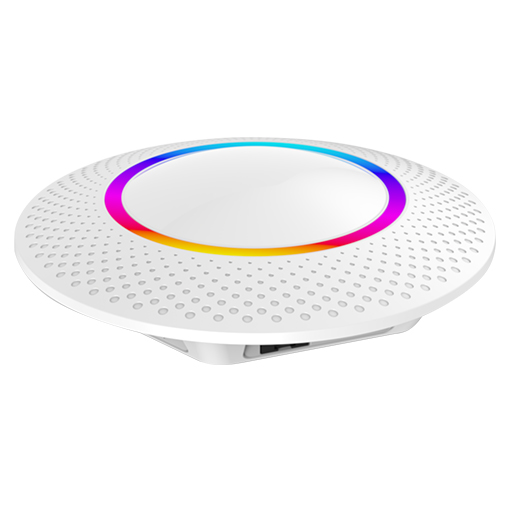

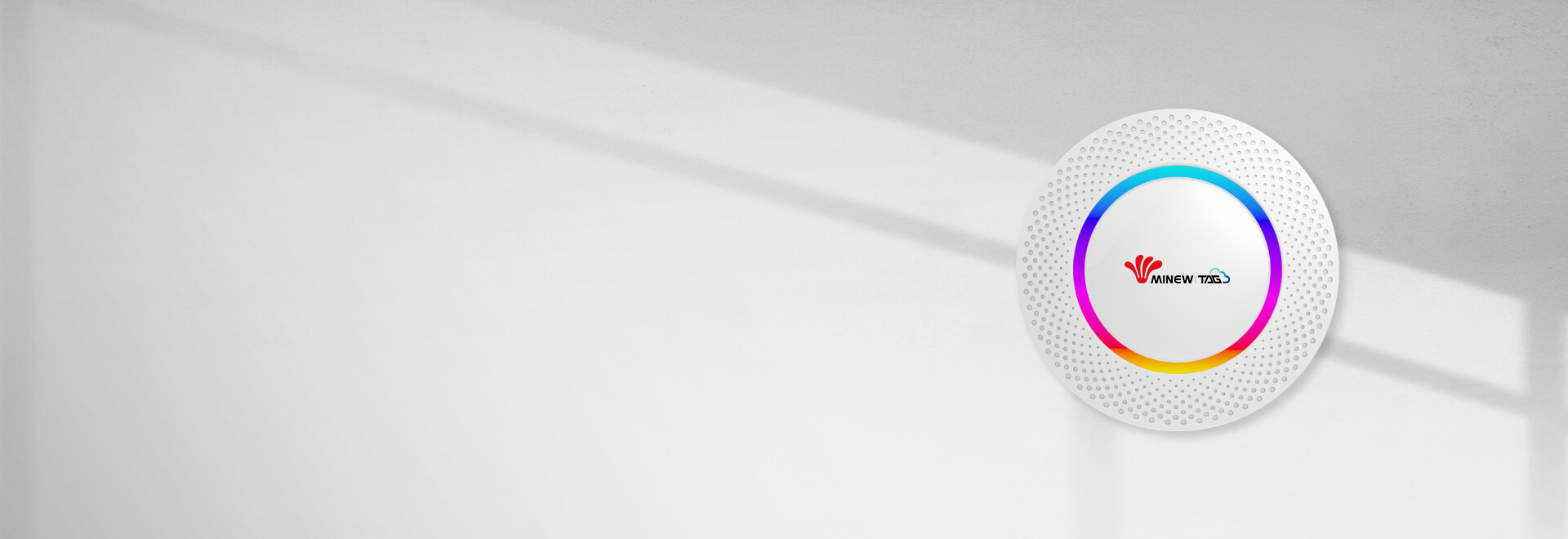

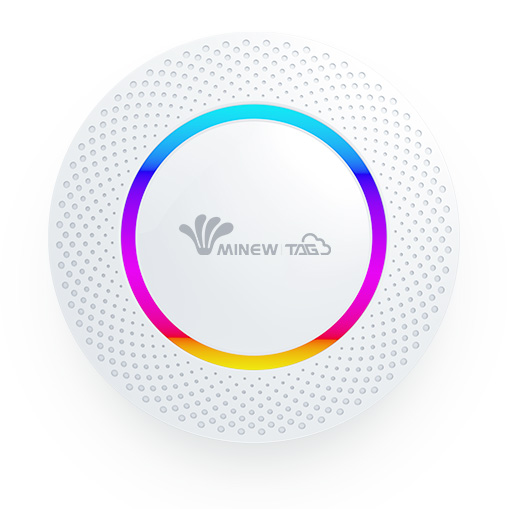

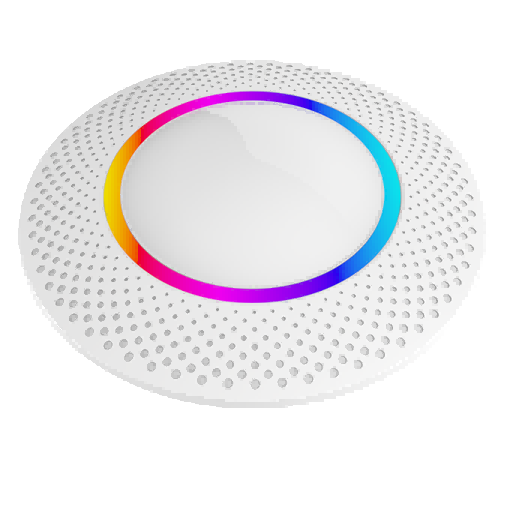

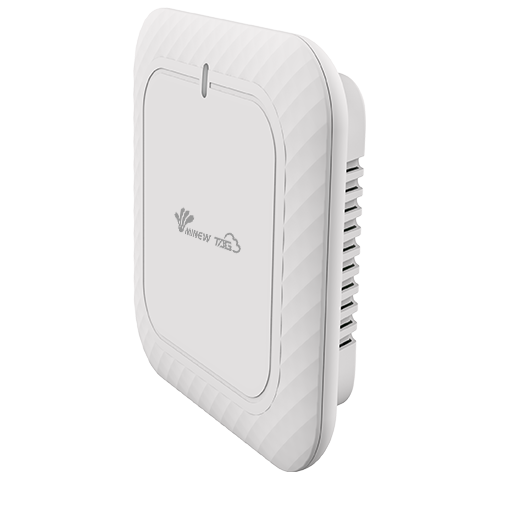

Gateway is a Bluetooth device control center, and is the central controller of the whole system. It connects Bluetooth low-power devices (ESL electronic tags, sensors and Bluetooth positioning beacons, etc.) through Bluetooth protocol, and analyzes and transmits data to the smart cloud platform through MQTT protocol. The image data generated by the system is sent to the corresponding label through the gateway.

Product specifications

Basic parameters

technical parameter

Shell material

ABS

colour

white

Product size

0150x36mm (built-in antenna)

weight

165g

Distance range

15 meter radius (open and undisturbed)

Power supply mode

5V1A DC power adapter or 802.3af PoEstandard network port power supply

Interface

1 10/100M RJ45 network interface, 1 USB interface

upgrade

Support USB upgrade and over the air upgrade

Shell material

ABS
WIFI protocol standard

IEEE 802.11 b/g/n

WIFI power

18dBm

Bluetooth standard

Bluetooth 5.0

Bluetooth receiver sensitivity

-108dBm

Wi-Fi

MTK chip

BLE

Nordic52 module

working temperature

-10℃~+50℃

Product characteristics

Multi-channel Bluetooth module

High transmission speed

Strong stability

Multi-source immunity

Flexible label binding

High network adaptability

USB upgrade and over the air upgrade

Colorful status light ring
